STAINLESS SQUARE TUBING

Using stainless steel tube? When a project requires maximum structural rigidity combined with absolute protection against oxidation, corrosion, and contamination, engineers turn to stainless steel square tubing.

Unlike standard carbon steel, stainless tubing is alloyed with heavy percentages of chromium and nickel. This creates a passive, self-healing oxide layer on the surface of the steel that actively repels rust. Because of its geometric shape, square tubing offers excellent load-bearing capabilities and flat surfaces that are significantly easier to bolt, weld, and fabricate than round pipe.

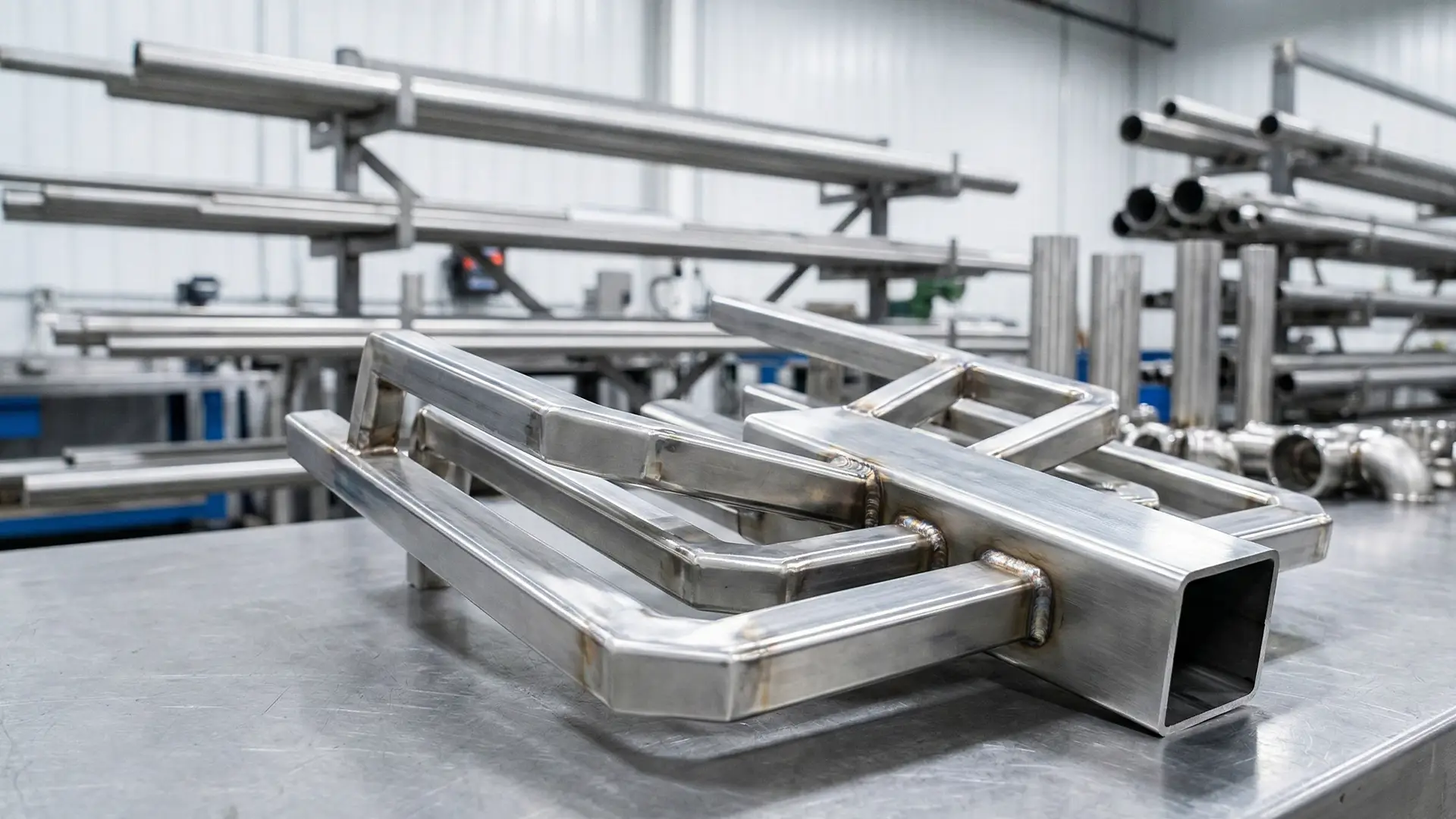

Whether you are building a sterile frame for a food processing plant, architectural handrails, or supports for a marine desalination facility, you will generally have to choose between the two dominant stainless grades: Type 304 and Type 316.

The Core Grades: 304 vs. 316 Stainless

Specifying the wrong grade of stainless steel can lead to catastrophic material failure in harsh environments or unnecessary budget overruns in mild ones. Here is how they compare:

Type 304 / 304L (The Workhorse)

Type 304 is the most versatile and widely used austenitic stainless steel in the world. It contains roughly 18% chromium and 8% nickel (often referred to as 18/8 stainless).

• Pros: Excellent general corrosion resistance, highly formable, and easily weldable. It is significantly more cost-effective than 316.
• Applications: Commercial kitchens, dairy and food processing equipment, architectural framework, and general structural supports in non-marine environments.
• The 'L' Designation: 304L is a low-carbon variation that prevents carbide precipitation during heavy welding, ensuring the weld seams remain corrosion-resistant.

Type 316 / 316L (The Marine & Chemical Grade)

Type 316 includes a critical addition to its chemistry: roughly 2% to 3% molybdenum. This specific element drastically increases the steel's resistance to pitting and crevice corrosion, particularly in environments exposed to chlorides (salt).

• Pros: Vastly superior corrosion resistance compared to 304, especially against saltwater, de-icing salts, and harsh industrial chemicals.
• Applications: Coastal architectural structures, wastewater treatment plants, pharmaceutical manufacturing, and marine hardware.

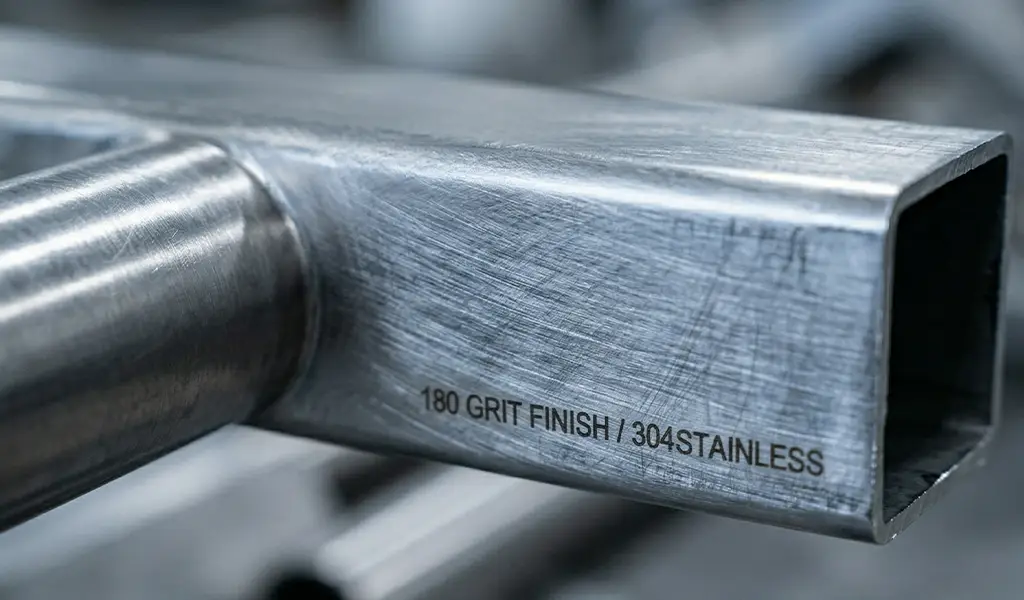

Surface Finishes: Aesthetic and Sanitary

Unlike structural carbon steel which is usually hidden behind drywall or coated in heavy industrial paint, stainless square tubing is frequently left exposed. Because of this, the surface finish is just as important as the chemical grade.

Carbon vs. Stainless: When to Switch

Stainless steel commands a premium price due to the high cost of nickel and chromium. If your project is structural, indoors, or located in an environment where standard industrial coatings (like paint, epoxy, or galvanizing) can adequately protect the steel, stainless may be overkill.
