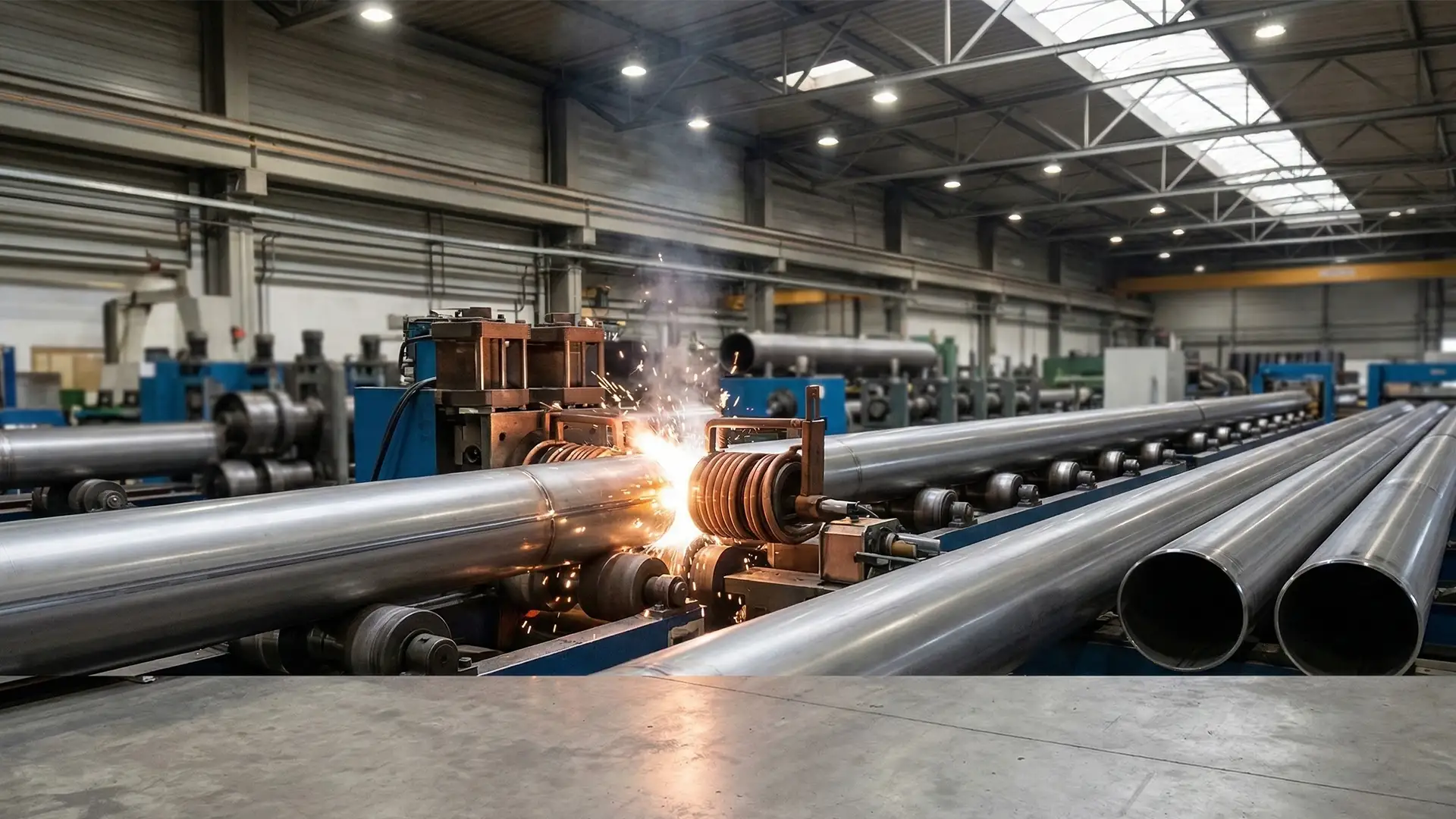

ERW (Electric Resistance Welded) is the industry standard for mid-sized pipe (2" to 24"). Often referred to as "Straight Seam" pipe, it is manufactured by cold-forming a ribbon of steel into a round shape and welding the seam using high-frequency electricity. This creates a bond where the weld is virtually invisible and as strong as the parent metal.
Availability & Specs
ERW pipe is available in a vast range of conditions, from high-pressure line pipe to surplus structural tubing.
| Size Range | 2-3/8" O.D. to 24.00" O.D. |
| Common Grades | API 5L (Line Pipe) ASTM A53 (Standard Pipe) ASTM A500 (Structural Tubing) ASTM A252 (Piling) |
| Lengths | Single Random (20'), Double Random (40'+), and Cut-to-Length up to 60'. |
| End Finish | Beveled, Square Cut, Threaded & Coupled (T&C), or Torch Cut. |
Common Applications
Because it combines high strength with tight dimensional tolerances, ERW is used across all sectors:
Infrastructure
- Pipe Piling: Foundation piles with attached points/plates.
- Bollards: Concrete-filled security barriers.
- Sign Poles: Highway signage and billboard supports.
Energy & Utility
- Line Pipe: Oil, gas, and water transmission.
- Water Well: Pump column and drilling casing.
- Fencing: Livestock corrals and high-security fencing.
💡 Did You Know?
ERW pipe production began in the 1920s, but early "Low-Frequency" methods sometimes suffered from seam defects. Around 1962, the industry revolutionized the process by switching to High-Frequency (HFW) welding.
Today's HFW process produces a normalized weld seam that is tough, reliable, and virtually free of the defects found in pre-1960s pipe.
Coatings & Fabrication
We can connect you with master distributors and structural steel suppliers offering custom fabrication services:
- Coatings: Fusion Bond Epoxy (FBE), Coal Tar, and Hot-Dip Galvanizing (Zinc).
- Attachments: Welding conical pile points, drive shoes, and end plates (loose or attached).
- Precision Cutting: Band saw cutting for short pieces, bollards, and custom lengths (2" and up).
Pipe Calculator
Open CalculatorCalculate the exact weight per foot of any diameter or wall thickness.
Find ERW Suppliers
Whether you need prime API line pipe or surplus structural tubing, browse our directory for distributors across the USA and Canada.
