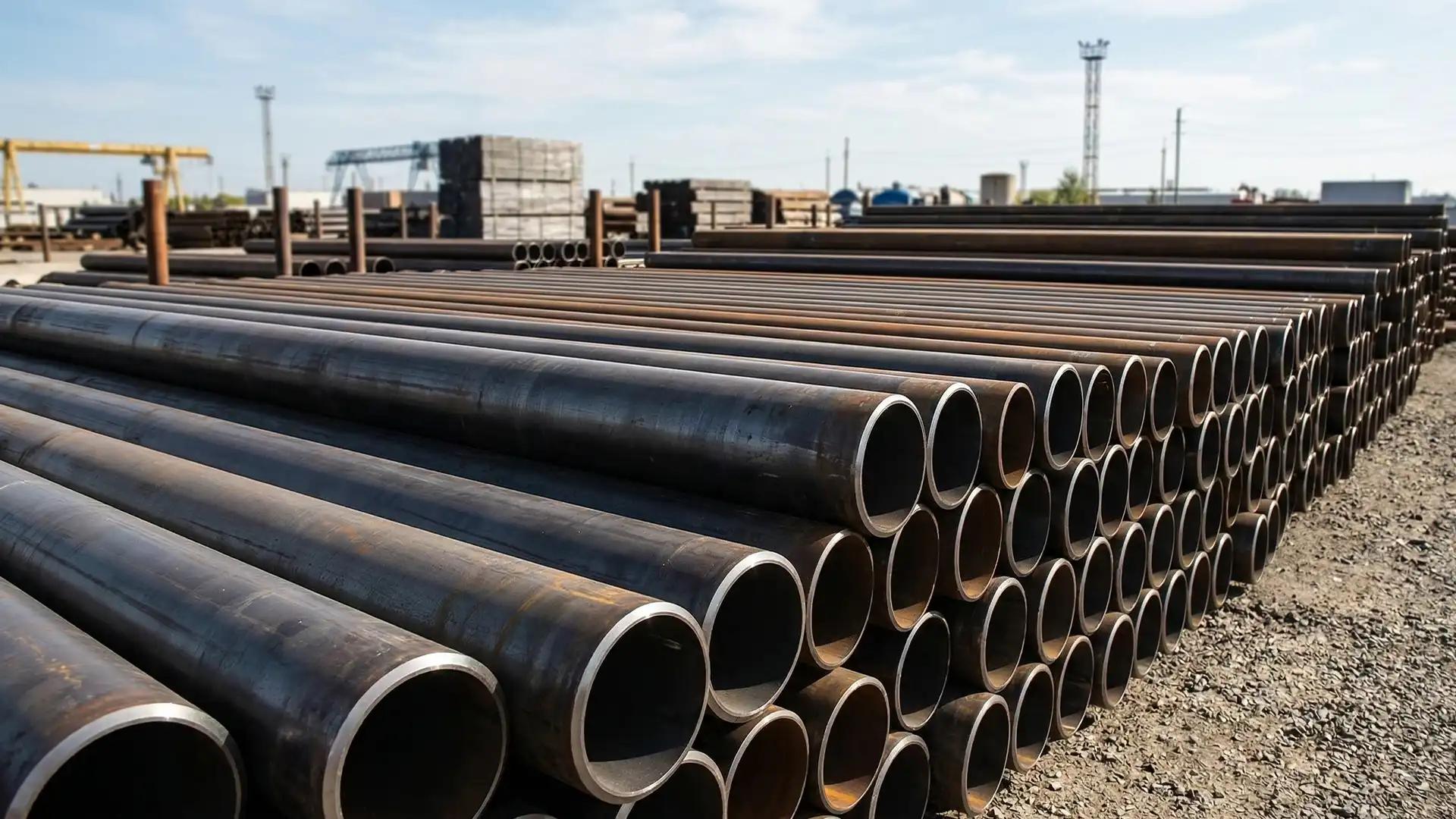

Steel Casing Pipe serves as a protective shield for vital underground infrastructure. It acts as a horizontal tunnel, safeguarding carrier pipes—such as water mains, natural gas lines, and fiber optic cables—from the crushing weight of earth and traffic above.
While often hidden from view, steel casing is the critical component that allows utilities to cross under highways, railroads, and bodies of water without disrupting the surface environment.
Installation Methods
The durability of steel makes it the material of choice for trenchless installation methods. There are two primary ways casing pipe is installed:
Jack and Bore (Auger)
The pipe is pushed horizontally through the ground using hydraulic jacks while an auger rotates inside to remove the spoil. This requires pipe with massive compressive strength to withstand the jacking forces.
Directional Drilling (HDD)
For longer crossings under rivers, casing pipe is welded into a continuous ribbon and pulled back through a pre-drilled hole. The welded joints must withstand significant tensile stress during the pullback.
Specifications & Standards
One of the most common misconceptions in the industry is that casing pipe is "just scrap pipe." The physical demands of installation require high-quality steel that is extremely straight and round. If a pipe is out-of-round or bowed, it can bind during the boring process, causing costly delays.
The ASTM A252 Standard
While some projects have loose requirements, most engineers specify ASTM A252 for casing pipe. This specification dictates:
- Minimum Yield Strength: Ensures the pipe won't deform under pressure.
- Tensile Strength: Critical for HDD "pullback" operations.
- Straightness Tolerances: Essential for accurate boring.
Essential Accessories
A complete casing system requires more than just the steel pipe. To ensure the internal "carrier pipe" remains safe inside the casing, two accessories are standard:
1. Casing Spacers
The carrier pipe is rarely allowed to rest on the bottom of the casing. "Casing Spacers" are clamped around the carrier pipe to center it. These can be made of stainless steel, carbon steel, or polyethylene. They electrically isolate the carrier pipe from the casing to prevent corrosion.
2. End Seals
Once the installation is complete, the ends of the casing run must be sealed to prevent water, dirt, and animals from entering the annular space. These are typically rubber seals that either "pull on" (seamless) or "wrap around" (for retrofitting) the pipe ends.
